規格型號：45147655
頻率：16.3676MHz

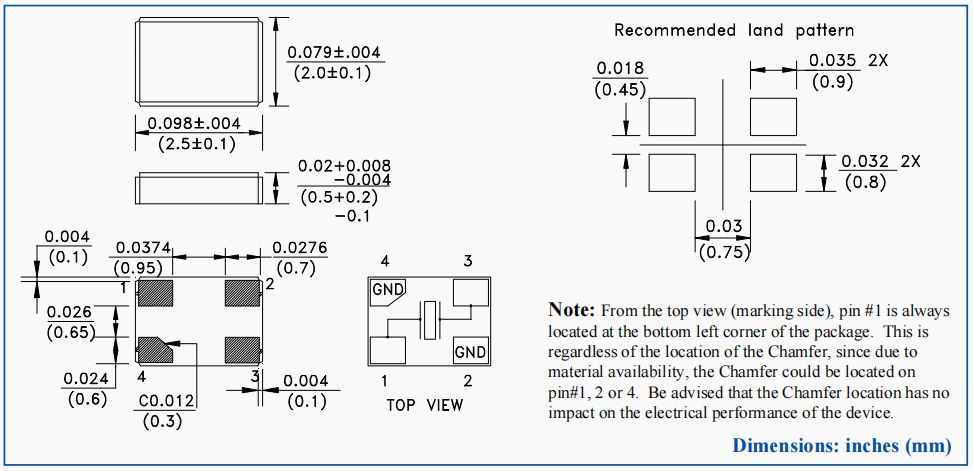

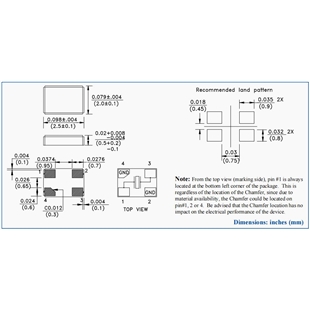

尺寸：2520mm
PDF
產品描述：美國ABRACON進口晶振,ABM10高品質2520晶振,ABM10-16.3676MHZ-D30-T3晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，2520晶振，四腳晶振，貼片...

美國ABRACON進口晶振,ABM10高品質2520晶振,ABM10-16.3676MHZ-D30-T3晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，2520晶振，四腳晶振，貼片晶振。適用于RoHS回流配置文件，在-10至+60ºC范圍內提供±10ppm的緊密穩定性，Seam密封陶瓷封裝確保高精度和可靠性，藍牙，無線應用，計算機，調制解調器，微處理器，通信，測試設備•便攜式收音機和MP3播放器

美國ABRACON進口晶振,ABM10高品質2520晶振,ABM10-16.3676MHZ-D30-T3晶振

參數	Minimum	Typical	Maximum	Units	Notes
頻率范圍	12.000		55.000	MHz	Fundamental
工作模式	Fundamental
工作溫度	-10		+60	ºC	See options
儲存溫度	-40		+125	ºC
頻率容差			±20	ppm	See options
頻率穩定度			±30	ppm	See options
等效串聯電阻	See table 1 below			?
分流電容			7	pF
負載電容	10			pF	Standard (See options if other than STD)
驅動電平		10	100	µW
老化			±5	ppm	First year
絕緣電阻	500			M ?	@ 100Vdc ± 15V

美國ABRACON進口晶振,ABM10高品質2520晶振,ABM10-16.3676MHZ-D30-T3晶振

編碼	品牌	型號	頻率	頻率穩定度	頻率容差	負載
ABM10-14.31818MHZ-18-E30-T3	Abracon	ABM10	14.31818 MHz	±30ppm	±20ppm	18 pF
ABM10-16.000MHZ-18-E30-T3	Abracon	ABM10	16 MHz	±30ppm	±20ppm	18 pF
ABM10-16.000MHZ-D30-T3	Abracon	ABM10	16 MHz	±30ppm	±20ppm	10 pF
ABM10-16.000MHZ-E20-T	Abracon	ABM10	16 MHz	±20ppm	±20ppm	10 pF
ABM10-16.3676MHZ-D30-T3	Abracon	ABM10	16.3676 MHz	±30ppm	±20ppm	10 pF
ABM10-16.3676MHZ-E20-T	Abracon	ABM10	16.3676 MHz	±20ppm	±20ppm	10 pF
ABM10-16.384MHZ-D30-T3	Abracon	ABM10	16.384 MHz	±30ppm	±20ppm	10 pF
ABM10-16.384MHZ-E20-T	Abracon	ABM10	16.384 MHz	±20ppm	±20ppm	10 pF
ABM10-165-38.400MHZ-T3	Abracon	ABM10	38.4 MHz			10 pF
ABM10-166-12.000MHZ-T3	Abracon	ABM10	12 MHz	±10ppm	±10ppm	8 pF
ABM10-167-12.000MHZ-T3	Abracon	ABM10	12 MHz	±30ppm	±10ppm	8 pF
ABM10-18.432MHZ-D30-T3	Abracon	ABM10	18.432 MHz	±30ppm	±20ppm	10 pF
ABM10-18.432MHZ-E20-T	Abracon	ABM10	18.432 MHz	±20ppm	±20ppm	10 pF
ABM10-19.200MHZ-D30-T3	Abracon	ABM10	19.2 MHz	±30ppm	±20ppm	10 pF
ABM10-19.200MHZ-E20-T	Abracon	ABM10	19.2 MHz	±20ppm	±20ppm	10 pF
ABM10-20.000MHZ-18-E30-T3	Abracon	ABM10	20 MHz	±30ppm	±20ppm	18 pF
ABM10-20.000MHZ-D30-T3	Abracon	ABM10	20 MHz	±30ppm	±20ppm	10 pF
ABM10-20.000MHZ-E20-T	Abracon	ABM10	20 MHz	±20ppm	±20ppm	10 pF
ABM10-22.1184MHZ-D30-T3	Abracon	ABM10	22.1184 MHz	±30ppm	±20ppm	10 pF
ABM10-22.1184MHZ-E20-T	Abracon	ABM10	22.1184 MHz	±20ppm	±20ppm	10 pF
ABM10-24.000MHZ-18-E30-T3	Abracon	ABM10	24 MHz	±30ppm	±20ppm	18 pF
ABM10-24.000MHZ-8-7-A15-T	Abracon	ABM10	24 MHz	±15ppm	±15ppm	8 pF
ABM10-24.000MHZ-D30-T3	Abracon	ABM10	24 MHz	±30ppm	±20ppm	10 pF
ABM10-24.000MHZ-E20-T	Abracon	ABM10	24 MHz	±20ppm	±20ppm	10 pF
ABM10-24.576MHZ-D30-T3	Abracon	ABM10	24.576 MHz	±30ppm	±20ppm	10 pF
ABM10-24.576MHZ-E20-T	Abracon	ABM10	24.576 MHz	±20ppm	±20ppm	10 pF
ABM10-25.000MHZ-18-E30-T3	Abracon	ABM10	25 MHz	±30ppm	±20ppm	18 pF
ABM10-25.000MHZ-D30-T3	Abracon	ABM10	25 MHz	±30ppm	±20ppm	10 pF
ABM10-25.000MHZ-E20-T	Abracon	ABM10	25 MHz	±20ppm	±20ppm	10 pF
ABM10-26.000MHZ-7-A15-T	Abracon	ABM10	26 MHz	±15ppm	±15ppm	10 pF
ABM10-26.000MHZ-D30-T3	Abracon	ABM10	26 MHz	±30ppm	±20ppm	10 pF
ABM10-27.000MHZ-D30-T3	Abracon	ABM10	27 MHz	±30ppm	±20ppm	10 pF
ABM10-27.000MHZ-E20-T	Abracon	ABM10	27 MHz	±20ppm	±20ppm	10 pF
ABM10-27.120MHZ-8-A10-T	Abracon	ABM10	27.12 MHz	±10ppm	±20ppm	8 pF
ABM10-28.63636MHZ-8-7-A15-T	Abracon	ABM10	28.63636 MHz	±15ppm	±15ppm	8 pF
ABM10-30.000MHZ-D30-T3	Abracon	ABM10	30 MHz	±30ppm	±20ppm	10 pF
ABM10-30.000MHZ-E20-T	Abracon	ABM10	30 MHz	±20ppm	±20ppm	10 pF
ABM10-32.000MHZ-7-A15-T	Abracon	ABM10	32 MHz	±15ppm	±15ppm	10 pF
ABM10-32.000MHZ-8-7-A15-T	Abracon	ABM10	32 MHz	±15ppm	±15ppm	8 pF
ABM10-32.000MHZ-D30-T3	Abracon	ABM10	32 MHz	±30ppm	±20ppm	10 pF
ABM10-38.400MHZ-18-E30-T3	Abracon	ABM10	38.4 MHz	±30ppm	±20ppm	18 pF
ABM10-40.000MHZ-18-E30-T3	Abracon	ABM10	40 MHz	±30ppm	±20ppm	18 pF
ABM10-40.000MHZ-8-7-A15-T	Abracon	ABM10	40 MHz	±15ppm	±15ppm	8 pF
ABM10-40.000MHZ-D30-T3	Abracon	ABM10	40 MHz	±30ppm	±20ppm	10 pF
ABM10-40.000MHZ-E20-T	Abracon	ABM10	40 MHz	±20ppm	±20ppm	10 pF
ABM10-48.000MHZ-18-E30-T3	Abracon	ABM10	48 MHz	±30ppm	±20ppm	18 pF
ABM10-48.000MHZ-D30-T3	Abracon	ABM10	48 MHz	±30ppm	±20ppm	10 pF
ABM10-48.000MHZ-E20-T	Abracon	ABM10	48 MHz	±20ppm	±20ppm	10 pF
