規格型號：96291425
頻率：38.4MHz
尺寸：2016mm
PDF
產品描述：ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，ABM11-38.400MHZ-D2X-T3晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度...

ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振，美國Abracon晶振公司，艾博康晶振，石英晶體，進口晶振，ABM11-38.400MHZ-D2X-T3晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，2016晶振，四腳晶振，貼片晶振。適用于RoHS回流配置文件，在-10至+60ºC范圍內提供±10ppm的緊密穩定性，Seam密封陶瓷封裝確保高精度和可靠性，藍牙，無線應用，計算機，調制解調器，微處理器，通信，測試設備•便攜式收音機和MP3播放器

ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振

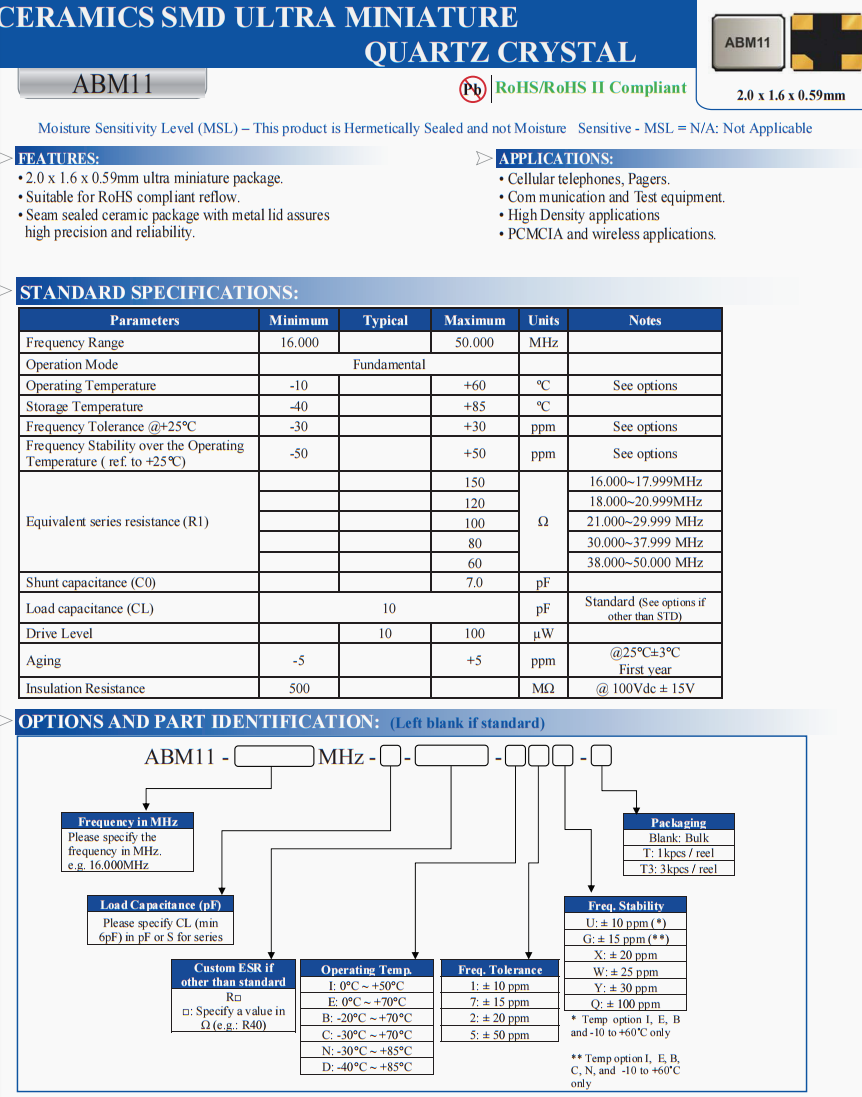

參數	Minimum	Typical	Maximum	Units	Notes
頻率范圍	16		50	MHz
工作模式	Fundamental
工作溫度	- 10		60	ºC	See options
儲存溫度	-40		85	ºC
頻率容差	-30		30	ppm	See options
頻率穩定度	-50		50	ppm	See options
分流電容			7	pF
負載電容	10			pF	Standard (See options ifother than STD)
驅動電平		10	100	µW
老化	-5		5	ppm	@25°C±3°C First year
絕緣電阻	500			M?	@ 100Vdc ± 15V

ABM11無鉛晶振,ABRACON汽車收音機晶振,ABM11-38.400MHZ-D2X-T3高品質晶振

編碼	品牌	型號	頻率	頻率穩定度	頻率容差	負載
ABM11-140-26.000MHZ-T3	Abracon	ABM11	26 MHz	±10ppm	±10ppm	8 pF
ABM11-141-26.000MHZ-T3	Abracon	ABM11	26 MHz	±30ppm	±10ppm	8 pF
ABM11-142-27.120MHZ-T3	Abracon	ABM11	27.12 MHz	±10ppm	±10ppm	8 pF
ABM11-143-27.120MHZ-T3	Abracon	ABM11	27.12 MHz	±30ppm	±10ppm	8 pF
ABM11-16.000MHZ-12-B1U-T	Abracon	ABM11	16 MHz	±10ppm	±10ppm	12 pF
ABM11-16.000MHZ-12-N1G-T	Abracon	ABM11	16 MHz	±15ppm	±10ppm	12 pF
ABM11-16.000MHZ-9-B1U-T	Abracon	ABM11	16 MHz	±10ppm	±10ppm	9 pF
ABM11-16.000MHZ-B1U-T	Abracon	ABM11	16 MHz	±10ppm	±10ppm	10 pF
ABM11-16.000MHZ-B7G-T	Abracon	ABM11	16 MHz	±15ppm	±15ppm	10 pF
ABM11-16.000MHZ-D2X-T	Abracon	ABM11	16 MHz	±20ppm	±20ppm	10 pF
ABM11-16.000MHZ-D2X-T3	Abracon	ABM11	16 MHz	±20ppm	±20ppm	10 pF
ABM11-20.000MHZ-B7G-T	Abracon	ABM11	20 MHz	±15ppm	±15ppm	10 pF
ABM11-20.000MHZ-D2X-T3	Abracon	ABM11	20 MHz	±20ppm	±20ppm	10 pF
ABM11-24.000MHZ-12-B1U-T	Abracon	ABM11	24 MHz	±10ppm	±10ppm	12 pF
ABM11-24.000MHZ-12-B1U-T3	Abracon	ABM11	24 MHz	±10ppm	±10ppm	12 pF
ABM11-24.000MHZ-12-N1G-T	Abracon	ABM11	24 MHz	±15ppm	±10ppm	12 pF
ABM11-24.000MHZ-18-BY-T3	Abracon	ABM11	24 MHz	±30ppm	±30ppm	18 pF
ABM11-24.000MHZ-9-B1U-T	Abracon	ABM11	24 MHz	±10ppm	±10ppm	9 pF
ABM11-24.000MHZ-9-B1U-T3	Abracon	ABM11	24 MHz	±10ppm	±10ppm	9 pF
ABM11-24.000MHZ-B1U-T	Abracon	ABM11	24 MHz	±10ppm	±10ppm	10 pF
ABM11-24.000MHZ-B1U-T3	Abracon	ABM11	24 MHz	±10ppm	±10ppm	10 pF
ABM11-24.000MHZ-B7G-T	Abracon	ABM11	24 MHz	±15ppm	±15ppm	10 pF
ABM11-24.000MHZ-D2X-T3	Abracon	ABM11	24 MHz	±20ppm	±20ppm	10 pF
ABM11-24.000MHZ-D7X-T3	Abracon	ABM11	24 MHz	±20ppm	±15ppm	10 pF
ABM11-25.000MHZ-16-R150-D-T	Abracon	ABM11	25 MHz	±50ppm	±30ppm	16 pF
ABM11-25.000MHZ-18-B2Y-T	Abracon	ABM11	25 MHz	±30ppm	±20ppm	18 pF
ABM11-25.000MHZ-B7G-T	Abracon	ABM11	25 MHz	±15ppm	±15ppm	10 pF
ABM11-25.000MHZ-D2X-T3	Abracon	ABM11	25 MHz	±20ppm	±20ppm	10 pF
ABM11-25.000MHZ-D7X-T	Abracon	ABM11	25 MHz	±20ppm	±15ppm	10 pF
ABM11-25.000MHZ-D7X-T3	Abracon	ABM11	25 MHz	±20ppm	±15ppm	10 pF
ABM11-26.000MHZ-18-BY-T3	Abracon	ABM11	26 MHz	±30ppm	±30ppm	18 pF
ABM11-26.000MHZ-B1U-T	Abracon	ABM11	26 MHz	±10ppm	±10ppm	10 pF
ABM11-26.000MHZ-B7G-T	Abracon	ABM11	26 MHz	±15ppm	±15ppm	10 pF
ABM11-26.000MHZ-D2X-T3	Abracon	ABM11	26 MHz	±20ppm	±20ppm	10 pF
ABM11-26.000MHZ-D7X-T	Abracon	ABM11	26 MHz	±20ppm	±15ppm	10 pF
ABM11-27.000MHZ-B1U-T	Abracon	ABM11	27 MHz	±10ppm	±10ppm	10 pF
ABM11-27.000MHZ-B7G-T	Abracon	ABM11	27 MHz	±15ppm	±15ppm	10 pF
ABM11-27.000MHZ-D2X-T3	Abracon	ABM11	27 MHz	±20ppm	±20ppm	10 pF
ABM11-27.000MHZ-D7X-T	Abracon	ABM11	27 MHz	±20ppm	±15ppm	10 pF
ABM11-27.120MHZ-9-B1U-T	Abracon	ABM11	27.12 MHz	±10ppm	±10ppm	9 pF
ABM11-27.120MHZ-B1U-T	Abracon	ABM11	27.12 MHz	±10ppm	±10ppm	10 pF
ABM11-28.63636MHZ-B7G-T	Abracon	ABM11	28.63636 MHz	±15ppm	±15ppm	10 pF
ABM11-28.63636MHZ-D2X-T3	Abracon	ABM11	28.63636 MHz	±20ppm	±20ppm	10 pF
ABM11-30.000MHZ-B1U-T	Abracon	ABM11	30 MHz	±10ppm	±10ppm	10 pF
ABM11-30.000MHZ-B1U-T3	Abracon	ABM11	30 MHz	±10ppm	±10ppm	10 pF
ABM11-30.000MHZ-B7G-T	Abracon	ABM11	30 MHz	±15ppm	±15ppm	10 pF
ABM11-30.000MHZ-D2X-T	Abracon	ABM11	30 MHz	±20ppm	±20ppm	10 pF
ABM11-30.000MHZ-D2X-T3	Abracon	ABM11	30 MHz	±20ppm	±20ppm	10 pF
ABM11-32.000MHZ-8-7G-T	Abracon	ABM11	32 MHz	±15ppm	±15ppm	8 pF
ABM11-32.000MHZ-9-B1U-T	Abracon	ABM11	32 MHz	±10ppm	±10ppm	9 pF
ABM11-32.000MHZ-B1U-T	Abracon	ABM11	32 MHz	±10ppm	±10ppm	10 pF
ABM11-32.000MHZ-B7G-T	Abracon	ABM11	32 MHz	±15ppm	±15ppm	10 pF
ABM11-32.000MHZ-D2X-T3	Abracon	ABM11	32 MHz	±20ppm	±20ppm	10 pF
ABM11-36.000MHZ-B7G-T	Abracon	ABM11	36 MHz	±15ppm	±15ppm	10 pF
ABM11-36.000MHZ-D2X-T3	Abracon	ABM11	36 MHz	±20ppm	±20ppm	10 pF
ABM11-38.400MHZ-12-B1U-T	Abracon	ABM11	38.4 MHz	±10ppm	±10ppm	12 pF
ABM11-38.400MHZ-18-BY-T3	Abracon	ABM11	38.4 MHz	±30ppm	±30ppm	18 pF
ABM11-38.400MHZ-9-B1U-T	Abracon	ABM11	38.4 MHz	±10ppm	±10ppm	9 pF
ABM11-38.400MHZ-B1U-T	Abracon	ABM11	38.4 MHz	±10ppm	±10ppm	10 pF
ABM11-38.400MHZ-B7G-T	Abracon	ABM11	38.4 MHz	±15ppm	±15ppm	10 pF
ABM11-38.400MHZ-D2X-T3	Abracon	ABM11	38.4 MHz	±20ppm	±20ppm	10 pF
ABM11-38.400MHZ-D7Y-T	Abracon	ABM11	38.4 MHz	±30ppm	±15ppm	10 pF
ABM11-40.000MHZ-12-B1U-T3	Abracon	ABM11	40 MHz	±10ppm	±10ppm	12 pF
ABM11-40.000MHZ-9-B1U-T3	Abracon	ABM11	40 MHz	±10ppm	±10ppm	9 pF
ABM11-40.000MHZ-B1U-T3	Abracon	ABM11	40 MHz	±10ppm	±10ppm	10 pF
ABM11-40.000MHZ-B7G-T	Abracon	ABM11	40 MHz	±15ppm	±15ppm	10 pF
ABM11-40.000MHZ-D2X-T3	Abracon	ABM11	40 MHz	±20ppm	±20ppm	10 pF
ABM11-44.000MHZ-B7G-T	Abracon	ABM11	44 MHz	±15ppm	±15ppm	10 pF
ABM11-44.000MHZ-D2X-T3	Abracon	ABM11	44 MHz	±20ppm	±20ppm	10 pF
ABM11-48.000MHZ-B7G-T	Abracon	ABM11	48 MHz	±15ppm	±15ppm	10 pF
ABM11-48.000MHZ-D2X-T3	Abracon	ABM11	48 MHz	±20ppm	±20ppm	10 pF
ABM11-48.000MHZ-D7X-T	Abracon	ABM11	48 MHz	±20ppm	±15ppm	10 pF
