規格型號：20361589
頻率：12.288MHz
尺寸：3225mm
PDF
產品描述：ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振，美國Abracon晶振公司，艾博康晶振，ABM8AIG晶振，ABM8AIG-12.288MHZ-12-2-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損...

ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振，美國Abracon晶振公司，艾博康晶振，ABM8AIG晶振，ABM8AIG-12.288MHZ-12-2-T3晶振，進口晶振，無源晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，3225晶振，四腳晶振，石英晶體，貼片晶振。AEC-Q200合格，汽車等級1:-40°C至+125°C，汽車等級0:-40°C至+150°C(可根據要求提供)，TS16949生產線認證，PPAP可根據要求提供，密封密封陶瓷封裝，符合RoHS/RoHS II標準且不含鉛，信息娛樂(lè )系統，無鑰匙進入和啟動，GPS和導航，舒適控制，ADAS(高級駕駛輔助系統)，車對車通信，激光雷達(光探測和測距)，車載網絡(luò )，動力總成和驅動控制，電源控制和轉換，工業控制和自動化

ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振

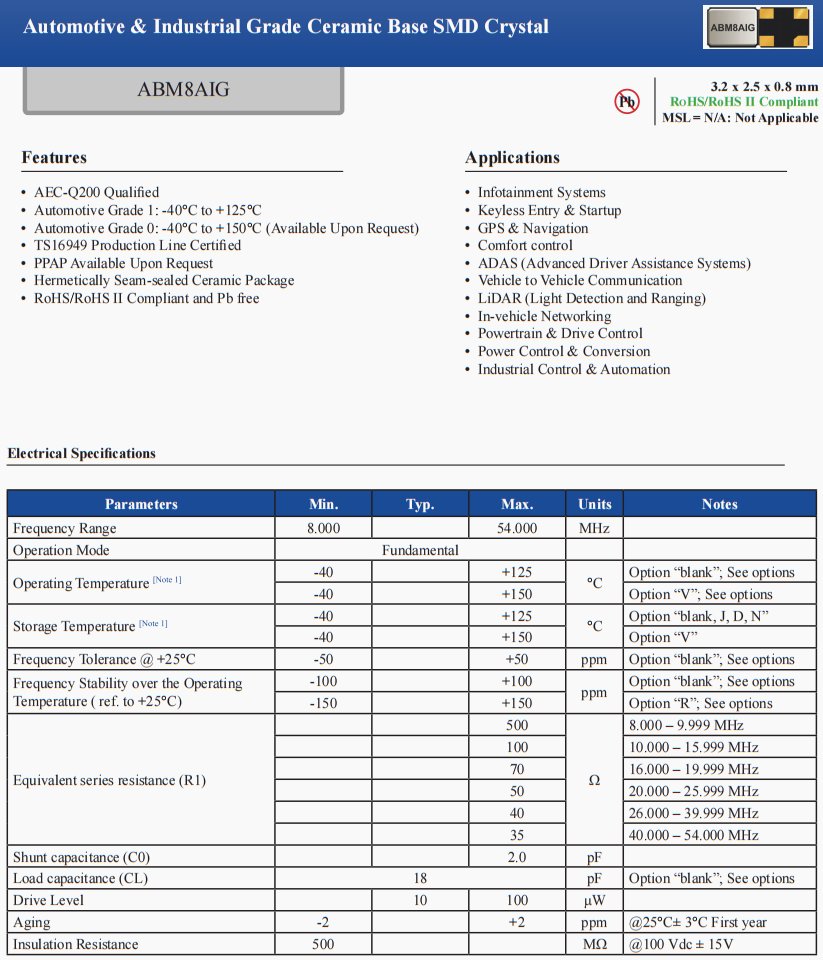

參數	Min.	Typ.	Max.	Units	Notes
頻率范圍	8.000		54.000	MHz
工作模式	Fundamental
工作溫度	-40		+125	°C	Option “blank”; See options
工作溫度	-40		+150	°C	Option “V”; See options
儲存溫度	-40		+125	°C	Option “blank,J,D, N”
儲存溫度	-40		+150	°C	Option “V”
頻率容差	-50		+50	ppm	Option “blank”; See options
頻率穩定度	-100		+100	ppm	Option “blank”; See options
頻率穩定度	-150		+150	ppm	Option “R”; See options
分流電容			2.0	pF
輔助電容	18			pF	Option “blank”; See options
驅動電平		10	100	μW
老化	-2		+2	ppm	@25°C± 3°C First year
絕緣電阻	500			MΩ	@100 Vdc ± 15V

ABM8AIG-12.288MHZ-12-2-T3進口晶振,Abracon進口3225晶振,ABM8AIG汽車動力總成晶振

編碼	品牌	型號	頻率	頻率穩定度	頻率容差	負載
ABM8AIG-10.000MHZ-12-2-T3	Abracon	ABM8AIG	10 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-10.000MHZ-12-2Z-T3	Abracon	ABM8AIG	10 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-12.000MHZ-12-2-T3	Abracon	ABM8AIG	12 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-12.000MHZ-12-2Z-T3	Abracon	ABM8AIG	12 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-12.000MHZ-12-D2Z-T	Abracon	ABM8AIG	12 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-12.000MHZ-2-T	Abracon	ABM8AIG	12 MHz	±100ppm	±20ppm	18 pF
ABM8AIG-12.000MHZ-4-T	Abracon	ABM8AIG	12 MHz	±100ppm	±30ppm	18 pF
ABM8AIG-12.000MHZ-8-D4Z-T	Abracon	ABM8AIG	12 MHz	±50ppm	±30ppm	8 pF
ABM8AIG-12.288MHZ-12-2-T3	Abracon	ABM8AIG	12.288 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-12.288MHZ-12-2Z-T3	Abracon	ABM8AIG	12.288 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-13.000MHZ-12-2-T3	Abracon	ABM8AIG	13 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-13.000MHZ-12-2Z-T3	Abracon	ABM8AIG	13 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-13.560MHZ-12-2-T3	Abracon	ABM8AIG	13.56 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-13.560MHZ-12-2Z-T3	Abracon	ABM8AIG	13.56 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-14.31818MHZ-12-2-T3	Abracon	ABM8AIG	14.31818 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-14.31818MHZ-12-2Z-T3	Abracon	ABM8AIG	14.31818 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-14.318MHZ-8-T	Abracon	ABM8AIG	14.318 MHz	±100ppm	±50ppm	8 pF
ABM8AIG-14.7456MHZ-12-2-T3	Abracon	ABM8AIG	14.7456 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-14.7456MHZ-12-2Z-T3	Abracon	ABM8AIG	14.7456 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-16.000MHZ-12-2-T3	Abracon	ABM8AIG	16 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-16.000MHZ-12-2Z-T	Abracon	ABM8AIG	16 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-16.000MHZ-12-2Z-T3	Abracon	ABM8AIG	16 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-16.000MHZ-4-T	Abracon	ABM8AIG	16 MHz	±100ppm	±30ppm	18 pF
ABM8AIG-16.000MHZ-82Z-T	Abracon	ABM8AIG	16 MHz	±50ppm	±20ppm	8 pF
ABM8AIG-16.384MHZ-12-2-T3	Abracon	ABM8AIG	16.384 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-16.384MHZ-12-2Z-T3	Abracon	ABM8AIG	16.384 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-18.432MHZ-12-2-T3	Abracon	ABM8AIG	18.432 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-18.432MHZ-12-2Z-T3	Abracon	ABM8AIG	18.432 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-19.6608MHZ-12-2-T3	Abracon	ABM8AIG	19.6608 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-19.6608MHZ-12-2Z-T3	Abracon	ABM8AIG	19.6608 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-20.000MHZ-12-2-T3	Abracon	ABM8AIG	20 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-20.000MHZ-12-2Z-T3	Abracon	ABM8AIG	20 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-20.000MHZ-4-T	Abracon	ABM8AIG	20 MHz	±100ppm	±30ppm	18 pF
ABM8AIG-20.000MHZ-8-T	Abracon	ABM8AIG	20 MHz	±100ppm	±50ppm	8 pF
ABM8AIG-22.1184MHZ-12-2-T3	Abracon	ABM8AIG	22.1184 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-22.1184MHZ-12-2Z-T3	Abracon	ABM8AIG	22.1184 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-24.000MHZ-12-2-T3	Abracon	ABM8AIG	24 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-24.000MHZ-12-2Z-T3	Abracon	ABM8AIG	24 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-24.000MHZ-82Z-T	Abracon	ABM8AIG	24 MHz	±50ppm	±20ppm	8 pF
ABM8AIG-24.000MHZ-R40-4-T	Abracon	ABM8AIG	24 MHz	±100ppm	±30ppm	18 pF
ABM8AIG-24.576MHZ-12-2-T3	Abracon	ABM8AIG	24.576 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-24.576MHZ-12-2Z-T3	Abracon	ABM8AIG	24.576 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-25.000MHZ-12-2-T3	Abracon	ABM8AIG	25 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-25.000MHZ-12-2Z-T3	Abracon	ABM8AIG	25 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-25.000MHZ-8-T	Abracon	ABM8AIG	25 MHz	±100ppm	±50ppm	8 pF
ABM8AIG-25.000MHZ-R40-4-T	Abracon	ABM8AIG	25 MHz	±100ppm	±30ppm	18 pF
ABM8AIG-26.000MHZ-12-2-T3	Abracon	ABM8AIG	26 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-26.000MHZ-12-2Z-T3	Abracon	ABM8AIG	26 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-27.000MHZ-12-2-T3	Abracon	ABM8AIG	27 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-27.000MHZ-12-2Z-T3	Abracon	ABM8AIG	27 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-28.63636MHZ-12-2-T3	Abracon	ABM8AIG	28.63636 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-28.63636MHZ-12-2Z-T3	Abracon	ABM8AIG	28.63636 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-30.000MHZ-12-2-T3	Abracon	ABM8AIG	30 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-30.000MHZ-12-2Z-T3	Abracon	ABM8AIG	30 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-30.000MHZ-12-D2Z-T	Abracon	ABM8AIG	30 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-32.000MHZ-12-2-T3	Abracon	ABM8AIG	32 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-32.000MHZ-12-2Z-T3	Abracon	ABM8AIG	32 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-32.000MHZ-12-D2Z-T	Abracon	ABM8AIG	32 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-32.000MHZ-8-2Z-T	Abracon	ABM8AIG	32 MHz	±50ppm	±20ppm	18 pF
ABM8AIG-33.000MHZ-12-2-T3	Abracon	ABM8AIG	33 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-33.000MHZ-12-2Z-T3	Abracon	ABM8AIG	33 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-33.000MHZ-12-D2Z-T	Abracon	ABM8AIG	33 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-40.000MHZ-12-2-T3	Abracon	ABM8AIG	40 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-40.000MHZ-12-2Z-T3	Abracon	ABM8AIG	40 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-40.000MHZ-12-D2Z-T	Abracon	ABM8AIG	40 MHz	±50ppm	±20ppm	12 pF
ABM8AIG-40.000MHZ-4-T	Abracon	ABM8AIG	40 MHz	±100ppm	±30ppm	18 pF
ABM8AIG-50.000MHZ-12-2-T3	Abracon	ABM8AIG	50 MHz	±100ppm	±20ppm	12 pF
ABM8AIG-50.000MHZ-12-2Z-T3	Abracon	ABM8AIG	50 MHz	±50ppm	±20ppm	12 pF
