高穩定性的32.768K圓柱晶振適用于鐘表應用E1WCDA12-32.768K，日蝕公司作為頻率元器件行業的領先者，專注于自身成長的同時不斷為市場創(chuàng )造巨大的價值，在創(chuàng )新型的產品上面更是有著自身獨特的見解以及專業化的設計理念，隨著通過深入研究， 針對新興行業開發適合其發展的石英晶體元器件，產品具備卓越的性能，可控的成本，同時也為公司未來的發展打下極好的基礎。

制造商零件編號	供應商	描述	ESR（等效串聯電阻）	工作溫度
EB1620JA10-25.000M TR	Ecliptek晶振	CRYSTAL 25.0000MHZ 10PF SMD	100 Ohms	-40°C ~ 85°C
EB1216YA10-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 10PF SMD	150 Ohms	-40°C ~ 85°C
EB1620JA10-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 10PF SMD	100 Ohms	-40°C ~ 85°C
EB1216YA10-27.120M TR	Ecliptek晶振	CRYSTAL 27.1200MHZ 10PF SMD	150 Ohms	-40°C ~ 85°C
EA2025JA18-30.000M TR	Ecliptek晶振	CRYSTAL 30.0000MHZ 18PF SMD	60 Ohms	-40°C ~ 85°C
EA2025SA10-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 10PF SMD	60 Ohms	-40°C ~ 85°C
EB3250AYA08-8.000M TR	Ecliptek晶振	CRYSTAL 8.0000MHZ 8PF SMD	100 Ohms	-40°C ~ 125°C
E1SJA18-6.000M TR	Ecliptek晶振	CRYSTAL 6.0000MHZ 18PF SMD	120 Ohms	-40°C ~ 85°C
E1SJA18-18.432M TR	Ecliptek晶振	CRYSTAL 18.4320MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
E1SFA18-4.000M TR	Ecliptek晶振	CRYSTAL 4.0000MHZ 18PF SMD	200 Ohms	-40°C ~ 85°C
E1SJA18-14.31818M TR	Ecliptek晶振	CRYSTAL 14.31818MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SJA18-6.144M TR	Ecliptek晶振	CRYSTAL 6.1440MHZ 18PF SMD	120 Ohms	-40°C ~ 85°C
E1SJA18-28.63636M TR	Ecliptek晶振	CRYSTAL 28.63636MHZ 18PF SMD	40 Ohms	-40°C ~ 85°C
E1SJA18-13.000M TR	Ecliptek晶振	CRYSTAL 13.0000MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SJA18-19.6608M TR	Ecliptek晶振	CRYSTAL 19.6608MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
E1SJA18-9.8304M TR	Ecliptek晶振	CRYSTAL 9.8304MHZ 18PF SMD	80 Ohms	-40°C ~ 85°C
E1SJA18-32.000M TR	Ecliptek晶振	CRYSTAL 32MHZ 18PF SMD	-	-
EA2025MA10-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 10PF SMD	100 Ohms	-40°C ~ 85°C
EA2025MA10-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 10PF SMD	60 Ohms	-40°C ~ 85°C
E1WCDA12-32.768K	Ecliptek晶振	CRYSTAL 32.7680KHZ 12.5PF TH	35 kOhms	-10°C ~ 60°C
E1SJA18-18.000M TR	Ecliptek晶振	CRYSTAL 18.0000MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
E1SJA18-20.000M TR	Ecliptek晶振	CRYSTAL 20.0000MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
E1SJA18-14.7456M TR	Ecliptek晶振	CRYSTAL 14.7456MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SCA18-7.3728M TR	Ecliptek晶振	CRYSTAL 7.3728MHZ 18PF SMD	160 Ohms	-40°C ~ 85°C
E1SEA18-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 18PF SMD	50 Ohms	-20°C ~ 70°C
E1SEA18-12.000M TR	Ecliptek晶振	CRYSTAL 12.0000MHZ 18PF SMD	70 Ohms	-20°C ~ 70°C
E1SJA18-10.000M TR	Ecliptek晶振	CRYSTAL 10.0000MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SJA18-12.000M TR	Ecliptek晶振	CRYSTAL 12.0000MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SJA18-11.0592M TR	Ecliptek晶振	CRYSTAL 11.0592MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SJA18-8.000M TR	Ecliptek晶振	CRYSTAL 8.0000MHZ 18PF SMD	90 Ohms	-40°C ~ 85°C
E1SJA18-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
E1SJA18-3.579545M TR	Ecliptek晶振	CRYSTAL 3.579545MHZ 18PF SMD	200 Ohms	-40°C ~ 85°C
E1SJA18-4.194304M TR	Ecliptek晶振	CRYSTAL 4.194304MHZ 18PF SMD	200 Ohms	-40°C ~ 85°C
E1SJA18-16.9344M TR	Ecliptek晶振	CRYSTAL 16.9344MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
E1SJA18-5.000M TR	Ecliptek晶振	CRYSTAL 5.0000MHZ 18PF SMD	150 Ohms	-40°C ~ 85°C
E1SJA18-13.500M TR	Ecliptek晶振	CRYSTAL 13.5000MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SJA18-9.216M TR	Ecliptek晶振	CRYSTAL 9.2160MHZ 18PF SMD	80 Ohms	-40°C ~ 85°C
E1SJA18-12.288M TR	Ecliptek晶振	CRYSTAL 12.2880MHZ 18PF SMD	70 Ohms	-40°C ~ 85°C
E1SJA18-4.500M TR	Ecliptek晶振	CRYSTAL 4.5000MHZ 18PF SMD	200 Ohms	-40°C ~ 85°C
E1SJA18-15.000M TR	Ecliptek晶振	CRYSTAL 15.0000MHZ 18PF SMD	60 Ohms	-40°C ~ 85°C
E1SJA18-4.433619M TR	Ecliptek晶振	CRYSTAL 4.433619MHZ 18PF SMD	200 Ohms	-40°C ~ 85°C
E1SJA18-16.384M TR	Ecliptek晶振	CRYSTAL 16.3840MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
E1SJA18-6.7458M TR	Ecliptek晶振	CRYSTAL 6.7458MHZ 18PF SMD	120 Ohms	-40°C ~ 85°C
E1SJA18-15.360M TR	Ecliptek晶振	CRYSTAL 15.3600MHZ 18PF SMD	60 Ohms	-40°C ~ 85°C
E1SDA18-25.000M TR	Ecliptek晶振	CRYSTAL 25.0000MHZ 18PF SMD	120 Ohms	0°C ~ 70°C
E1SJA18-4.9152M TR	Ecliptek晶振	CRYSTAL 4.9152MHZ 18PF SMD	200 Ohms	-40°C ~ 85°C
E1SGA18-25.000M TR	Ecliptek晶振	CRYSTAL 25.0000MHZ 18PF SMD	120 Ohms	0°C ~ 70°C
EA2532QA18-26.000M TR	Ecliptek晶振	CRYSTAL 26.0000MHZ 18PF SMD	60 Ohms	-40°C ~ 85°C
EA2532QA18-20.000M TR	Ecliptek晶振	CRYSTAL 20.0000MHZ 18PF SMD	60 Ohms	-40°C ~ 85°C
EA2532LA18-30.000M TR	Ecliptek晶振	CRYSTAL 30.0000MHZ 18PF SMD	50 Ohms	-40°C ~ 85°C
EA2532QA18-13.560M TR	Ecliptek晶振	CRYSTAL 13.5600MHZ 18PF SMD	150 Ohms	-40°C ~ 85°C
EB2532YA12-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 12PF SMD	60 Ohms	-40°C ~ 125°C
EB1216JA10-26.000M TR	Ecliptek晶振	CRYSTAL 26.0000MHZ 10PF SMD	150 Ohms	-40°C ~ 85°C
EB1620JA10-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 10PF SMD	120 Ohms	-40°C ~ 85°C
EA2025JA18-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 18PF SMD	100 Ohms	-40°C ~ 85°C
E1WSDA12-32.768K TR	Ecliptek晶振	CRYSTAL 32.768KHZ晶振 12.5PF SMD	60 kOhms	-10°C ~ 60°C
EA2025JA18-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 18PF SMD	60 Ohms	-40°C ~ 85°C
EA2025JA10-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 10PF SMD	80 Ohms	-40°C ~ 85°C
EB3250JA12-10.000M TR	Ecliptek晶振	CRYSTAL 10.0000MHZ 12PF SMD	100 Ohms	-40°C ~ 85°C
EB3250AYA08-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 8PF SMD	50 Ohms	-40°C ~ 125°C
EB3250YA12-12.000M TR	Ecliptek晶振	CRYSTAL 12.0000MHZ 12PF SMD	60 Ohms	-40°C ~ 125°C
EB3250AYA08-10.000M TR	Ecliptek晶振	CRYSTAL 10.0000MHZ 8PF SMD	100 Ohms	-40°C ~ 125°C
E1SJA18-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 18PF SMD	40 Ohms	-40°C ~ 85°C
EA2532LA18-25.000M TR	Ecliptek晶振	CRYSTAL 25.0000MHZ 18PF SMD	60 Ohms	-40°C ~ 85°C
EA2532UA12-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 12PF SMD	60 Ohms	-40°C ~ 85°C
EB2532JA12-30.000M TR	Ecliptek晶振	CRYSTAL 30.0000MHZ 12PF SMD	50 Ohms	-40°C ~ 85°C
EB2532JA12-18.432M TR	Ecliptek晶振	CRYSTAL 18.4320MHZ 12PF SMD	70 Ohms	-40°C ~ 85°C
EB2532YA12-18.432M TR	Ecliptek晶振	CRYSTAL 18.4320MHZ 12PF SMD	70 Ohms	-40°C ~ 125°C
EB1216JA10-25.000M TR	Ecliptek晶振	CRYSTAL 25.0000MHZ 10PF SMD	150 Ohms	-40°C ~ 85°C
EB1216JA10-32.000M TR	Ecliptek晶振	CRYSTAL 32.0000MHZ 10PF SMD	150 Ohms	-40°C ~ 85°C
EB3250JA12-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 12PF SMD	50 Ohms	-40°C ~ 85°C
EB3250YA12-16.000M TR	Ecliptek晶振	CRYSTAL 16.0000MHZ 12PF SMD	50 Ohms	-40°C ~ 125°C
EB3250YA12-10.000M TR	Ecliptek晶振	CRYSTAL 10.0000MHZ 12PF SMD	100 Ohms	-40°C ~ 125°C
EB3250YA12-24.000M TR	Ecliptek晶振	CRYSTAL 24.0000MHZ 12PF SMD	40 Ohms	-40°C ~ 125°C
E3WSDC12-32.768K TR	Ecliptek晶振	CRYSTAL 32.7680KHZ 12PF SMD	80 kOhms	-40°C ~ 85°C

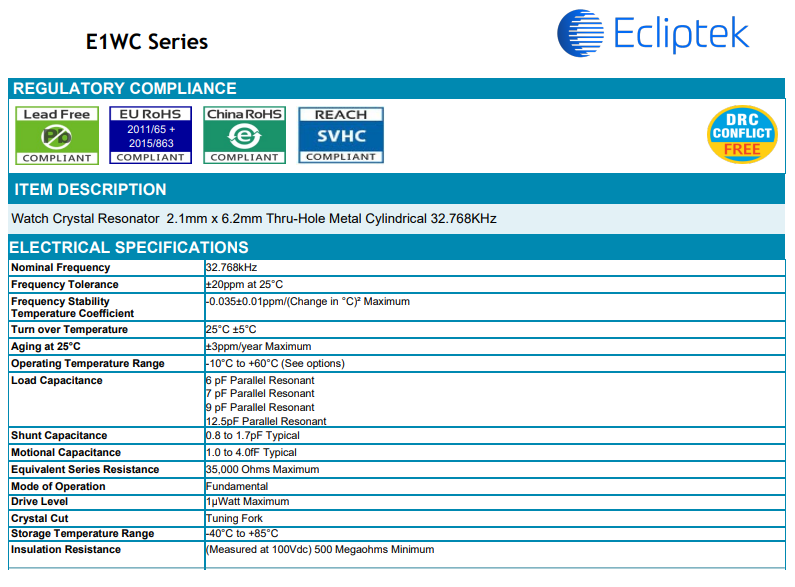

日蝕發布新穎且創(chuàng )意型的產品，編碼E1WCDA12-32.768K，手表晶體諧振器2.1mmx6.2mm通孔金屬圓柱，32.768K晶振，音叉晶體，無源晶振，插件圓柱晶振，頻率為32.768KHZ，負載電容為12.5PF，頻率容差±20ppm，工作溫度-10°C~+ 60°C，產品具備良好的可靠性能，比較適合用于鐘表應用，錄音筆，安防產品，電子數碼產品等領域。


高穩定性的32.768K圓柱晶振適用于鐘表應用E1WCDA12-32.768K，插件圓柱晶振最適合用于比較低端的電子產品,比如兒童玩具,普通家用電器,即使在汽車電子領域中也能使產品高可靠性的使用.并且可用于安全控制裝置的CPU時鐘信號發生源部分,好比時鐘單片機上的石英晶振,在極端嚴酷的環境條件下,晶振也能正常工作,具有穩定的起振特性,高耐熱性,耐熱循環性和耐振性等.
