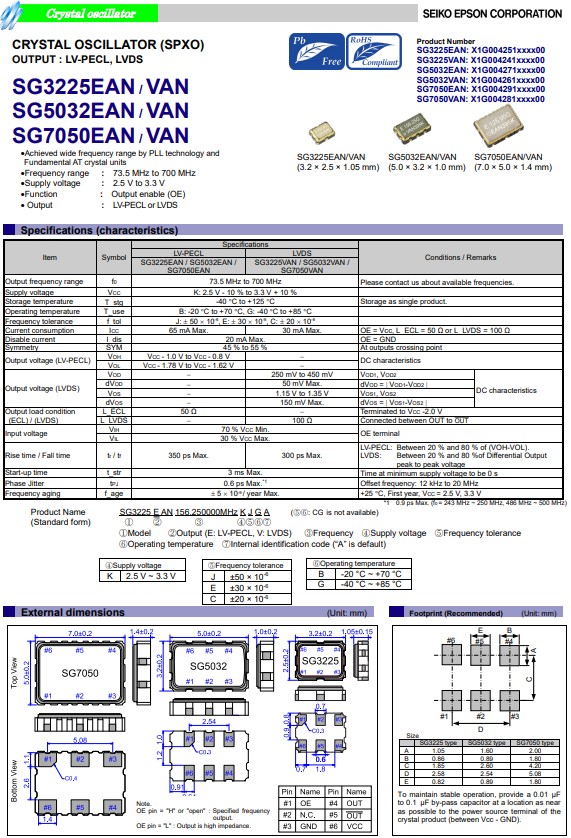

差分晶振的不同輸出意義:HCSL代表"高速電流轉向邏輯".LVDS代表"低壓差分信號".LV-PECL輸出代表"低壓正發射極耦合邏輯".愛普生晶振通過使用PLL技術和AT晶體單元來實現寬的頻率范圍,參數表中我們看到了愛普生差分晶振的頻率可達73.5MHz~700MHz高頻率點,儲存溫度在-40℃~125℃,使用性能穩定。
日本進口愛普生晶振SG5032VAN，是一款LVDS輸出差分石英晶體振蕩器，小體積晶振尺寸5.0x3.2mm有源晶振，六腳貼片晶振，電源電壓2.5V至3.3V，寬頻率范圍73.5MHz至700MHz任意一頻點具有低電源電壓，滿足產品低消耗電流的特點，該產品具有超小型，輕薄型，低抖動晶振，低電源電壓，低功耗，低耗能，低損耗，低相位噪聲，低電平等特點，能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的，被廣泛用于通訊設備，GPS定位器，機頂盒，光端機，安防設備及各種頻率控制設備上.
GPS定位器專用晶振SG5032VAN,X1G004261003300,低抖動晶振

產品編碼	型號	頻率	貼片晶振	輸出波
X1G004261000100	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000200	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000500	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000600	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001100	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001300	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001400	SG5032VAN	155.520000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002000	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002100	SG5032VAN	125.006250MHz	5.00x3.20x1.20mm	LVDS
X1G004261002300	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002400	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002500	SG5032VAN	400.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002900	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003100	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003300	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003400	SG5032VAN	312.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261004300	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261006200	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261006700	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261006900	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS

X1G004261007100	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261010200	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261010700	SG5032VAN	153.600000MHz	5.00x3.20x1.20mm	LVDS
X1G004261011400	SG5032VAN	78.125000MHz	5.00x3.20x1.20mm	LVDS
X1G004261011900	SG5032VAN	120.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261012100	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS
X1G004261012500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261012600	SG5032VAN	133.333300MHz	5.00x3.20x1.20mm	LVDS
X1G004261012800	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261012900	SG5032VAN	135.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261013100	SG5032VAN	322.265625MHz	5.00x3.20x1.20mm	LVDS
X1G004261013300	SG5032VAN	230.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261013500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261013600	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS
X1G004261013800	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261014100	SG5032VAN	161.132812MHz	5.00x3.20x1.20mm	LVDS
X1G004261014300	SG5032VAN	625.000000MHz	5.00x3.20x1.20mm	LVDS

GPS定位器專用晶振SG5032VAN,X1G004261003300,低抖動晶振
差分晶振近年來逐漸出現在我們的視線中，以及越來越多的電子工程師會更青睞差分晶振。隨著信息化的發展，差分晶振高性能、低功耗、低噪聲的優點，使其成為很多設計適合的方案。但仍有不少電子工程師對差分晶振選型上存在誤區以及盲點。差分晶振與常規晶振不同，差分晶振有不同的輸出信號，LVPECL，HCSL，LVDS晶振，是差分晶振通用的輸出信號
