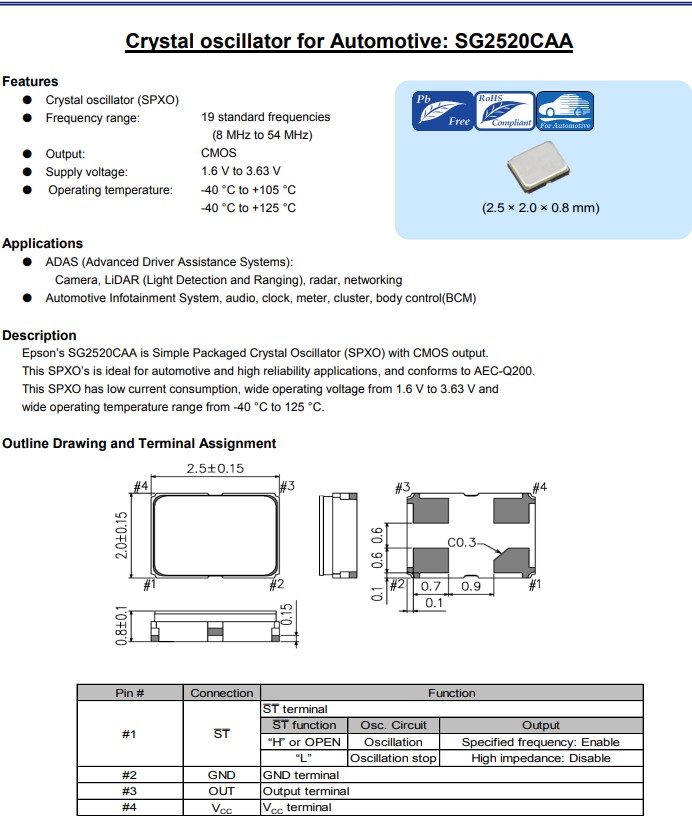

愛普生晶振SG2520CAA是具有CMOS輸出的簡單封裝石英晶體振蕩器(SPXO)。小體積晶振尺寸2.5x2.0mm四腳貼片晶振，這款SPXO非常適合汽車和高可靠性應用，符合AEC-Q200標準。該SPXO具有低功耗、1.6V至3.63V的寬工作電壓以及40°C至85°C的寬工作溫度范圍，此外還可提供高達125°C的工作溫度，輸出頻率范圍在8MHz至54MHz，該產品具有超小型，輕薄型，低電壓晶振，高精度，高性能，高品質等特點，適用于ADAS(高級駕駛輔助系統): 攝像頭、激光雷達(光探測和測距)、雷達、網絡 ，汽車信息娛樂系統、音頻、時鐘、儀表、組合儀表、車身控制(BCM)等。
愛普生晶振SG2520CAA具有小體積輕薄型低電壓晶振,X1G005951001516,SPXO有源晶振

產品編碼	型號	頻率	貼片晶振	輸出波
X1G005951000416	SG2520CAA	27.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951000516	SG2520CAA	27.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951000616	SG2520CAA	12.288000MHz	2.50x2.00x0.80mm	CMOS
X1G005951000716	SG2520CAA	24.576000MHz	2.50x2.00x0.80mm	CMOS
X1G005951000816	SG2520CAA	25.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951000916	SG2520CAA	25.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951001016	SG2520CAA	20.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951001116	SG2520CAA	20.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951001216	SG2520CAA	24.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951001316	SG2520CAA	24.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951001416	SG2520CAA	11.289600MHz	2.50x2.00x0.80mm	CMOS
X1G005951001516	SG2520CAA	8.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951001616	SG2520CAA	10.000000MHz	2.50x2.00x0.80mm	CMOS

X1G005951001716	SG2520CAA	12.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951001816	SG2520CAA	14.745600MHz	2.50x2.00x0.80mm	CMOS
X1G005951001916	SG2520CAA	16.666600MHz	2.50x2.00x0.80mm	CMOS
X1G005951002016	SG2520CAA	22.579200MHz	2.50x2.00x0.80mm	CMOS
X1G005951002116	SG2520CAA	33.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951002216	SG2520CAA	33.333300MHz	2.50x2.00x0.80mm	CMOS
X1G005951002316	SG2520CAA	40.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951002416	SG2520CAA	48.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951002516	SG2520CAA	50.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951002616	SG2520CAA	50.000000MHz	2.50x2.00x0.80mm	CMOS
X1G005951002716	SG2520CAA	54.000000MHz	2.50x2.00x0.80mm	CMOS

愛普生晶振SG2520CAA具有小體積輕薄型低電壓晶振,X1G005951001516,SPXO有源晶振
SG2520CAA有源晶振具有高精度超小型的表面貼片型石英晶體振蕩器,適用于移動通信終端的基準時鐘等移動通信領域.比如智能手機,無線通信,衛星導航,平臺基站等數碼產品類別,晶振本身小型,薄型具備各類移動通信的基準時鐘源用頻率,貼片晶振具有優良的電氣特性,耐環境性能適用于移動通信領域,滿足無鉛工作的高溫回流溫度曲線要求.
