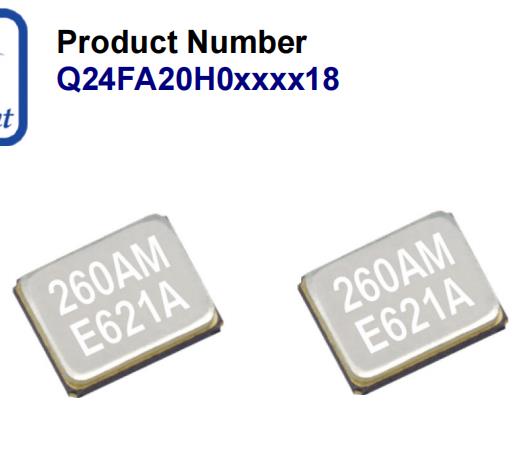

Q24FA20H00172,FA-20H,20pF,SMD,2520mm,25MHZ,尺寸為2520mm，頻率為25MHZ，負載電容20pf，頻率穩定度10ppm.愛普生晶振，進口晶振，無源晶振，SMD晶振，水晶振動子，2520mm晶振，石英晶體諧振器，手機專用晶振藍牙晶振，無線局域網，水晶振動子，石英貼片晶振，SMD晶振，無源晶體，主控板時鐘晶振，娛樂(lè )設備晶振，無線設備晶振，消費產品晶振，Q24FA20H00152晶振，Q24FA20H00147晶振。
石英晶體產品主要適用于手機、藍牙、無線局域網，ISM波段無線電，主控板時鐘，娛樂(lè )設備，無線產品，消費產品等領域。Q24FA20H00172,FA-20H,20pF,SMD,2520mm,25MHZ

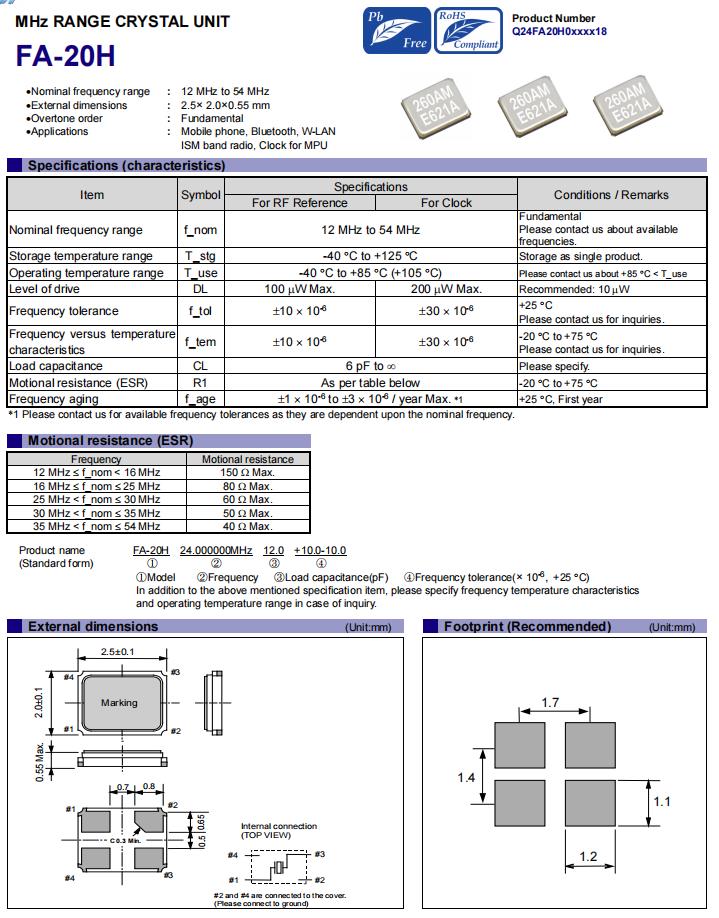

Q24FA20H00172,FA-20H,20pF,SMD,2520mm,25MHZ  參數表

Item

Symbol

Specifications

Conditions / Remarks

For RF Reference

For Clock

Nominal frequency range

f_nom

12MHz to 54MHz

Fundamental Please contact us about available frequencies.

Storage temperature range

T_stg

-40 °C to + 125 °C

Storage as single product.

Operating temperature range

T_use

-40 °C to +85 °C (+105 °C)

Please contact us about +85 °C < T_use

Level of drive

DL

100 µW Max.

200 µW Max.

Recommended: 10 µW

Frequency tolerance

f_tol

± 10 × 10-6

±30 × 10-6

+25 °C Please contact us for inquiries.

Frequency versus temperature characteristics

f_tem

± 10 × 10-6

±30 × 10-6

-20 °C to +75 °C Please contact us for inquiries.

Load capacitance

CL

6 pF to ∞

Please specify.

Motional resistance (ESR)

R1

As per table below

-20 °C to +75 °C

Frequency aging

f_age

± 1 × 10-6 to ±3 × 10-6 / year Max. *1

+25 °C, First year

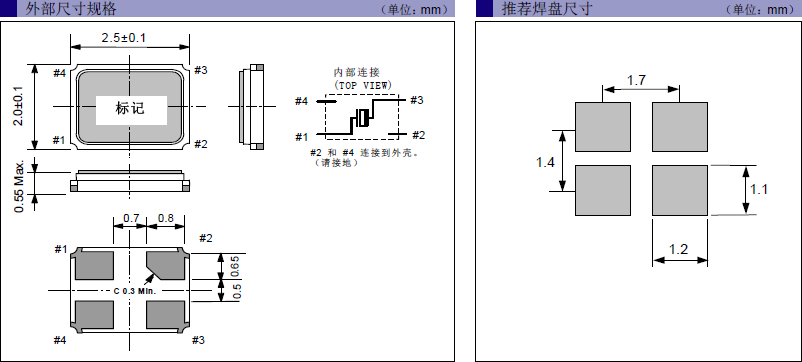

Q24FA20H00172,FA-20H,20pF,SMD,2520mm,25MHZ 尺寸圖
Q24FA20H00172晶振  特點：
更多相關的日本愛普生晶振型號

編碼	尺寸	型號	頻率	負載	頻率 @+25°C	工作溫度
Q24FA20H00001	2.5 x 2 x 0.55mm	FA-20H	18.000000 MHz	10 pF	+/-10 ppm	-30 to +85 °C
Q24FA20H00003	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00005	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00006	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00008	2.5 x 2 x 0.55mm	FA-20H	48.000000 MHz	7 pF	+/-50 ppm	-20 to +70 °C
Q24FA20H00029	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00031	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00036	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	11.5 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00038	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00039	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-9/+11 ppm	-20 to +75 °C
Q24FA20H00044	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00047	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8.5 pF	+/-15 ppm	-20 to +85 °C
Q24FA20H00050	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00051	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm	-15 to +75 °C
Q24FA20H00052	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00053	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-20 ppm	-20 to +70 °C
Q24FA20H00054	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00059	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00066	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00069	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	-30 to +85 °C
Q24FA20H00070	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00073	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00074	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10.5 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00077	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00079	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	16 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00085	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00086	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-15 ppm	-20 to +75 °C
Q24FA20H00087	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	10 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00092	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00093	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm	-20 to +70 °C
Q24FA20H00095	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00097	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00100	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	20 pF	+/-20 ppm	-20 to +75 °C
Q24FA20H00106	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00114	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00115	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	8 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00116	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-30 ppm	-30 to +85 °C
Q24FA20H00118	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	18 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00122	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00126	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	15 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00128	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00132	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00137	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm	-20 to +80 °C
Q24FA20H00139	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	8 pF	+/-30 ppm	-40 to +85 °C
Q24FA20H00147	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00150	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-30 ppm	-20 to +85 °C
Q24FA20H00151	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00152	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00153	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-10 ppm	-30 to +85 °C
Q24FA20H00155	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
Q24FA20H00156	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00166	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00169	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00172	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	20 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00175	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00176	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00193	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00196	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00201	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00202	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	14 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00208	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	13 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00209	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00214	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00223	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00225	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	8 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00228	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	10 pF	+/-30 ppm	-30 to +85 °C
Q24FA20H00229	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00232	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00233	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	+/-10 ppm	-20 to +85 °C
Q24FA20H00238	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00241	2.5 x 2 x 0.55mm	FA-20H EPSON晶振	27.000000 MHz	12 pF	+/-30 ppm	-20 to +70 °C
Q24FA20H00242	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00247	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	16 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00249	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	7 pF	+/-30 ppm	-20 to +70 °C
Q24FA20H00251	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-25 ppm	-20 to +75 °C
Q24FA20H00260	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00266	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-30 ppm	-40 to +85 °C
Q24FA20H00270	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-30 ppm	-30 to +85 °C
Q24FA20H00271	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-20 ppm	-30 to +70 °C
Q24FA20H00272	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-30 ppm	-20 to +70 °C
Q24FA20H00276	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	10 pF	+/-15 ppm	-20 to +75 °C
Q24FA20H00279	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00287	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
Q24FA20H00289	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00298	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	12 pF	+/-10 ppm	-20 to +70 °C
Q24FA20H00308	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00315	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
Q24FA20H00321	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
Q24FA20H00322	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	10 pF	+/-15 ppm	-30 to +85 °C
